Tutorial 3: ILEX config files

Overview

For ease of use, users have the option of creating an FRB config file that holds all the parameters, metaparameters, hyperparameters as well as plotting/fitting options that can easily be tweaked in one placed. These config files are also used in the additional ILEX scripts provided. A config file can be made by either using the make_config.py script or by directly copying the defaut.yaml file in ilex/files/ directory. An FRB config file looks something like the following:

data:  # file paths for stokes dynamic spectra
  dsI: "220610_dsI.npy"
  dsQ: "220610_dsQ.npy"
  dsU: "220610_dsU.npy"
  dsV: "220610_dsV.npy"

par:   # parameters
  name:   "FRB220610"
  RA:     "00:00:00.0000"
  DEC:    "00:00:00.0000"
  DM:     0.0
  bw:     336
  MJD:    0
  cfreq:  1271.5
  t_lim_base:  [0.0, 3100.0]
  f_lim_base:  [0.0, 336.0]
  t_ref:  0
  nchan:  336
  nsamp:  0
  dt:     0.05
  df:     4.0
  RM:     null
  f0:     null
  pa0:    0.0

metapar:   # metaparameters
  t_crop:     [20.9, 23.8]
  f_crop:     [1103.5, 1200]
  terr_crop:  null
  tN:         1
  fN:         1
  zapchan:    null
  norm:       "None"

hyperpar:   # hyperparameters
  verbose:        False
  force:          False
  show_plots:     False
  save_plots:     True
  plot_type:  "regions"
  residuals:      True
  plotPosterior:  True

Using the FRB config file

An FRB config file can be used when either creating an FRB instance or when using the frb.load_data() method. All the FRB parameters will then be loaded in and ready to use!

# import
from ilex.frb import FRB

# create FRB instance with config file
frb = FRB(yaml_file = "examples/220610.yaml") # or frb = FRB("examples/220610.yaml")

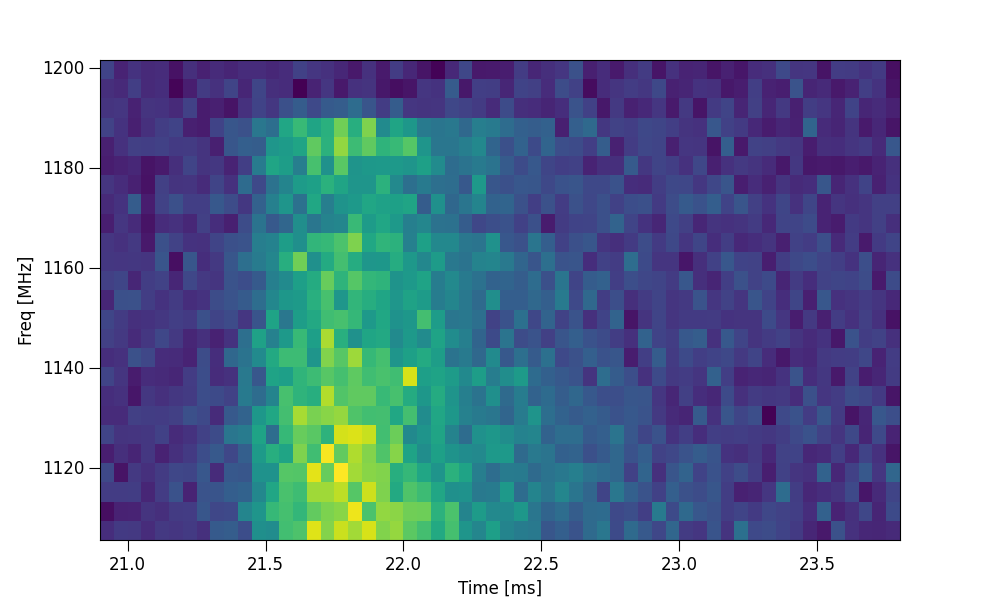

../_images/220610_dsI_crop.png

Saving the FRB instance as a config file

The .save_data() method allows the user to save an FRB instance as a .yaml file for quick use later. To do so, set save_yaml = True and provide a name for the yaml file using the yaml_file argument. If the FRB instance was created by loading in a yaml file in the first place, that file will be overwritten unless yaml_file is specified. If not, then the .yaml file name will be set to <FRB.name>.yaml.

# save frb instance as a .yaml file
frb.save_data(save_yaml = True, yaml_file = "FRB220610.yaml")
