Tutorial 5: Channel zapping

This tutorial demonstrates how to flag/zap frequency channels in ILEX.

Channel zapping

When working with radio data, often the case there will be Radio Frequency Interference (RFI) that oversaturates the FRB signal in a given frequency channel/sub-band. Therefor it is important to (in most cases) ignore these channels i.e. zap them from the FRB.

First, lests load in our data using a .yaml file. Then plot the data

# imports
from ilex.frb import FRB

frb = FRB("examples/220610.yaml")

# lets plot the entire dataset
frb.set(t_crop = ["min", "max"], f_crop = ["min", "max"])
frb.plot_data("dsI")

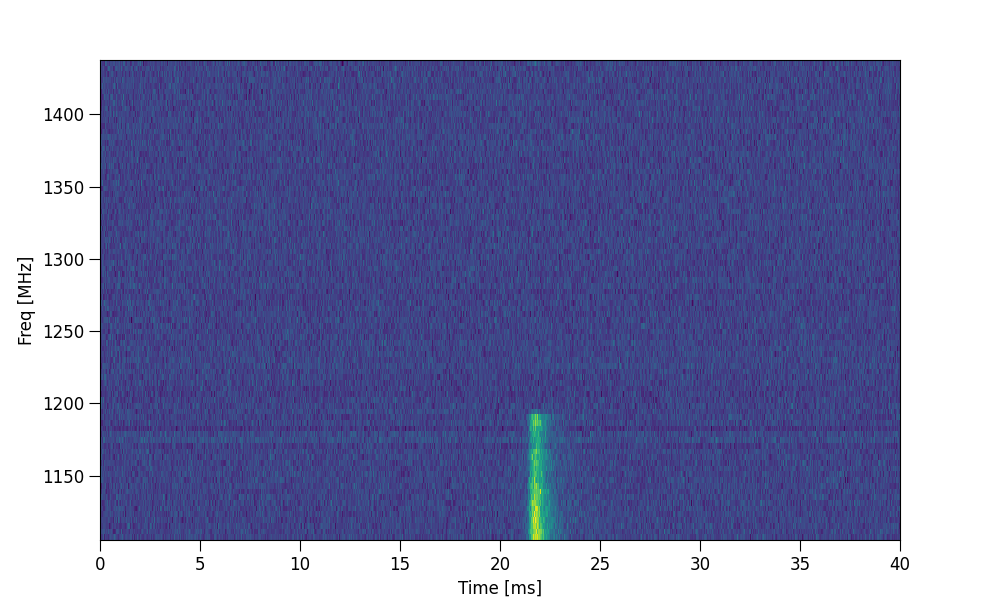

../_images/220610_dsI.png

As you can see, there are some not so great RFI between 1150 and 1200 MHz, lets try and zap them. We can do so by setting the zapchan parameter

frb.set(zapchan = "1160:1180")

frb.plot_data("dsI")

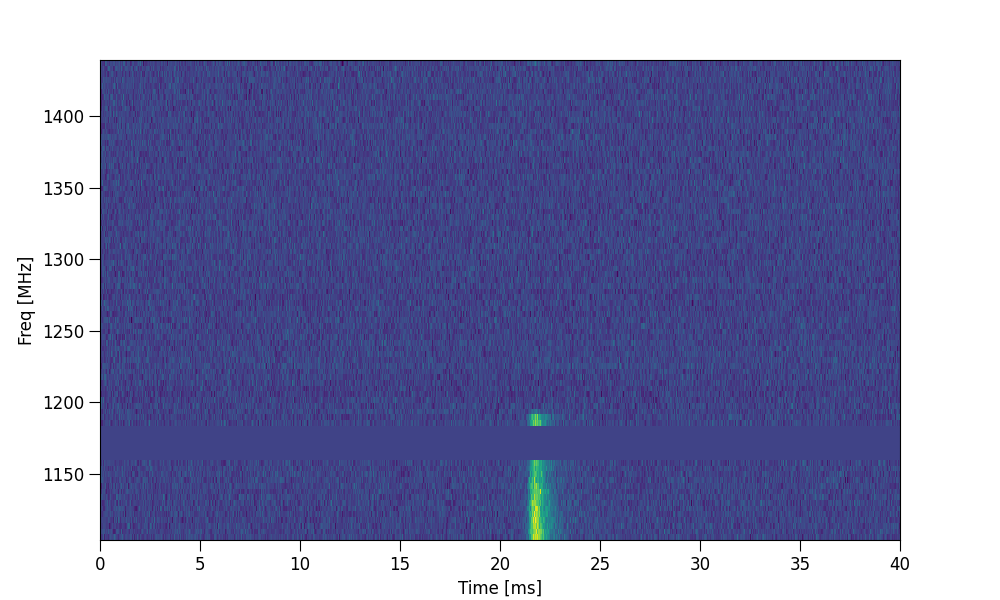

../_images/220610_dsI_zapped.png

Now that RFI has been flagged and will be ignored when doing subsequent analysis, such as plotting the frequency spectra, fitting ect. (The zapchan parameter can also be set in the config file!)

zapchan

The zapchan parameter has a specific format that one must follow to properly zap channels. zapchan is a string that specifies the range of frequencies (in MHz) that the user wishes to zap. For example, in the above example zapchan = 1160:1180 zapped all the channels between 1160 and 1180 MHz inclusive!. You can specify multiple frequency ranges to zap, which we seperate with ,

frb.set(zapchan = "1160:1180, 1250:1300")

You can also zap single channels

frb.set(zapchan = "1250")

# zap a single channel and a range of channels
frb.set(zapchan = "1160:1180, 1250")

NOTE: The zapchan string does not need to be in any particular order!.

The .zap_channels() method allows for more utility in zapping channels. The simplest use case is appending the current zapchan string with additional frequency channels

frb.zap_channels("1250:1300")

you can also zap frequency channels that are close to zero by toggling zapzeros = True and specifying a tolerance threshold zapzerosmargin

frb.zap_channels(zapzeros = True, zapzerosmargin = 1e-5)

you can also reset any additional channel zapping that was added after loading in the FRB data

frb.zap_channels(resetzap = True)

The .zap_channels() method also provides an interactive mode that allows the user to zap channels using an interactive GUI

frb.zap_channels(interactive = True)

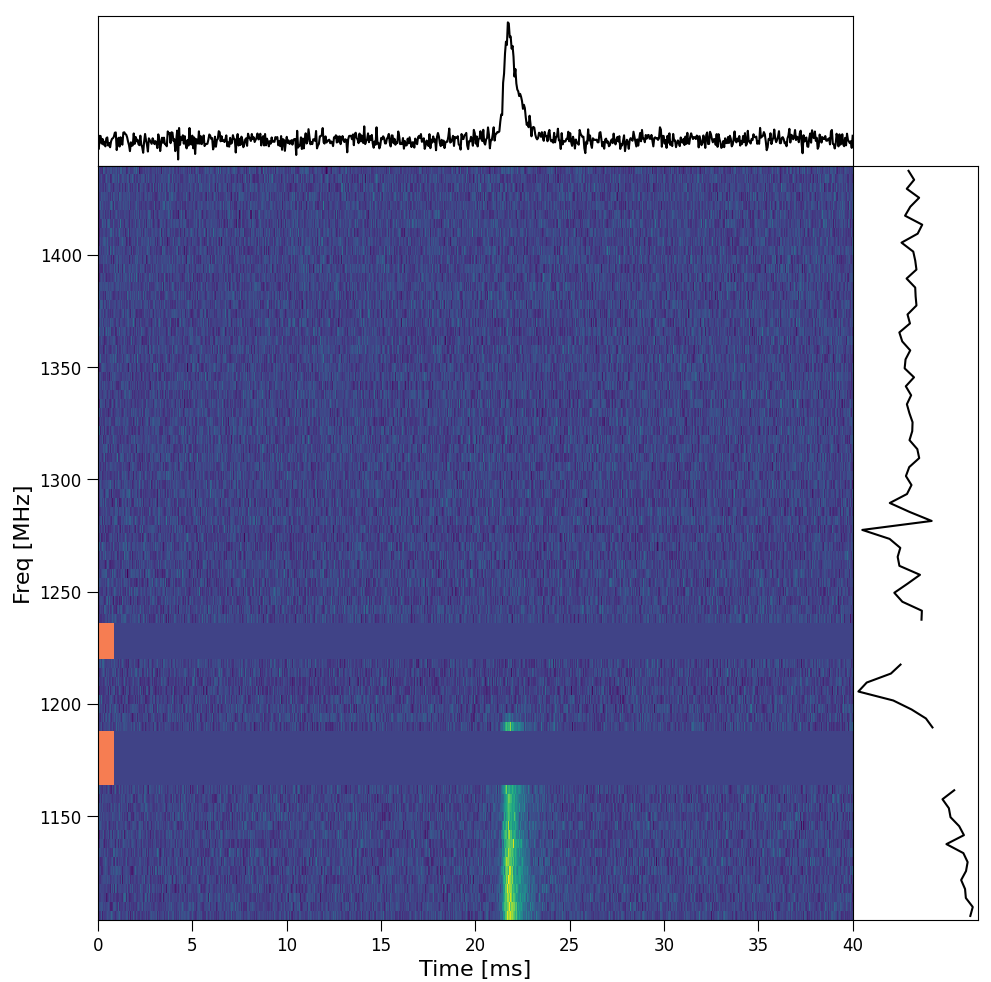

../_images/interactive_zapping.png

Interactive zapping GUI. Orange patches on LHS of dynamic spectra show flagged channels, red lines show user defined region ready to zap.

NOTE: The interactive zapping utility will automatically load in any prior zapping that has been applied.

Loading in data with prior zapping

If any data that is loaded in, already has zapping applied, ILEX will detect these channels and update zapchan accordingly. ILEX does this by checking which frequency channels in the dynamic spectrum are set to np.nan.
